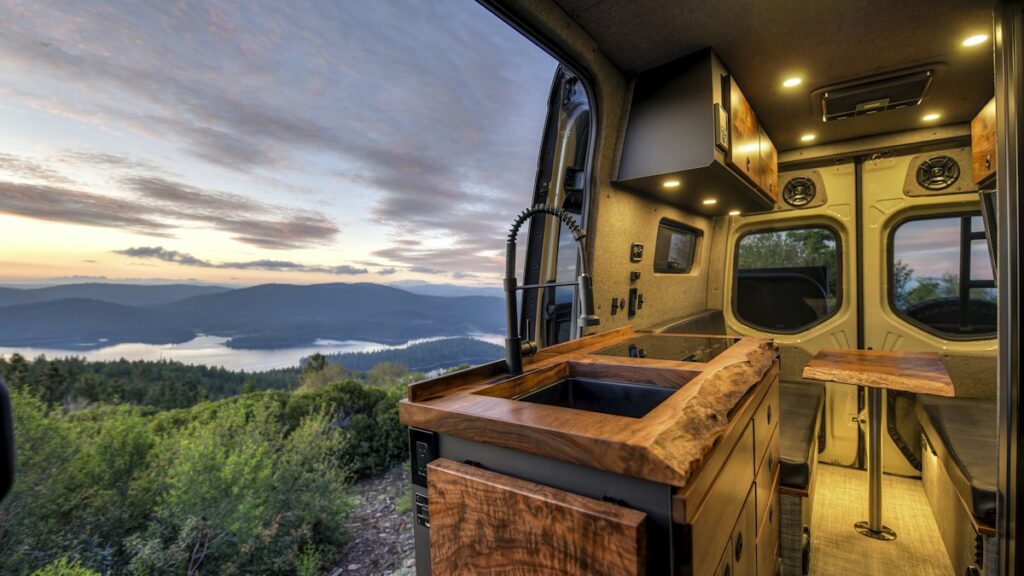

Eliminating road vibration rumble, thermal bridging, and vapor condensation in custom campervan conversions.
The Distinction Between Resonance Damping and Thermal Resistance
Vibration damping mats (butyl rubber with foil backing) do not insulate against temperature; they add mass to sheet metal panels to eliminate low-frequency acoustic drumming while driving. Covering 30% to 50% of the center of each panel is acoustically optimal. Applying 100% coverage wastes money and adds unnecessary vehicle weight.
Comparing Insulation Materials: 3M Thinsulate vs Sheep Wool vs PIR Foam Board
3M Thinsulate SM600L is hydrophobic, lightweight, and compresses into tight structural ribs without retaining moisture. Havelock natural sheep wool manages humidity passively and resists mold. Rigid polyisocyanurate (PIR) foam boards offer the highest R-value per inch (R-6.5) but require acoustic decoupling to prevent squeaking against metal frames.
Thermal Bridging and Condensation Barrier Strategies
Metal vehicle structural ribs conduct exterior cold directly into the living space, causing warm interior breath to condense into hidden water droplets behind wall panels. Cover all exposed metal ribs with closed-cell foam tape or thin Thinsulate strips before installing wall furring strips.
Technical Specifications & Reference Matrix
| Insulation Material | R-Value per Inch | Moisture Behavior | Vibration Damping |
|---|---|---|---|
| Butyl Damping Sheets (2mm) | Negligible (R-0.2) | Waterproof | Maximum Vibration Kill |
| 3M Thinsulate SM600L | R-5.2 (at 1.7″) | Hydrophobic (Dries instantly) | High Acoustic Absorption |
| Rigid Polyiso (PIR) Foam | R-6.5 | Impermeable | Prone to creaking |
| Natural Sheep Wool | R-3.8 | Absorbs & releases moisture | Moderate Sound Absorb |
💡 Expert Field Recommendation
Never use standard residential fiberglass batts or open-cell spray foam inside a campervan. Fiberglass absorbs condensation, sags over time, and vibrates microscopic glass fibers into the cabin air over washboard roads.
Diagnostic Troubleshooting Checklist
- Walls squeak constantly while driving on highway: Wood furring strips are rubbing directly against bare van metal. Remove screws and place felt or rubber tape between wood and metal.
Frequently Asked Questions
Do I need a separate plastic vapor barrier behind the walls?
In modern campervan builds using breathable hydrophobic insulation like Thinsulate, plastic vapor barriers trap moisture against the cold outer van skin, promoting rust. Breathable barriers with dedicated cabin ventilation are superior.
